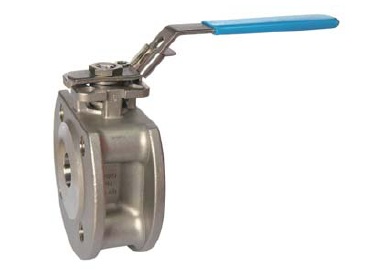

1-PC WAFER BALL VALVE FULL PORT PN16 FLANGE END ISO 5211 DIRECT MOUNTING PAD
Enlargement Product Name : 1-PC WAFER BALL VALVE FULL PORT PN16 FLANGE END ISO 5211 DIRECT MOUNTING PAD
Product Description
PRODUCT DESCRIPTIONS: WDM-1F
PRODUCT CODE: WDM-1F
MATERIAL: CF8 / SS304, CF8M / SS316
DIN2633 PN16 FLANGE END
ISO 5211 DIRECT MOUNTING PAD
LOCKING LEVER AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598/SP-110
INVESTMENT CASTING BODY

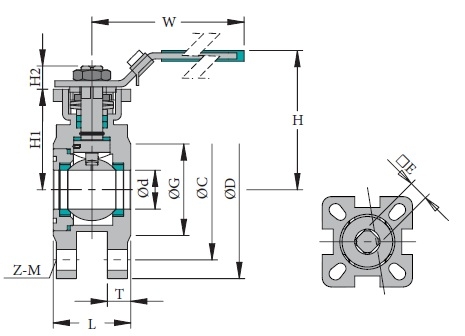

| SIZE | Ød | L | W | H | H1 | H2 | ØG | ØC | ØD | T | □E | Z-M | ISO 5211 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 15 | 42 | 120 | 77 | 48.5 | 9 | 45 | 65 | 95 | 10 | 9 | 4-M12 | F03/F04 |
| DN20 | 20 | 44 | 120 | 85 | 54 | 9 | 58 | 75 | 105 | 12 | 9 | 4-M12 | F03/F04 |
| DN25 | 25 | 50 | 137 | 94 | 60 | 11 | 68 | 85 | 115 | 15 | 11 | 4-M12 | F04/F05 |
| DN32 | 32 | 60 | 187 | 104 | 72 | 11 | 78 | 100 | 140 | 15 | 11 | 4-M16 | F04/F05 |
| DN40 | 40 | 65 | 187 | 114 | 77 | 14 | 88 | 110 | 150 | 16 | 14 | 4-M16 | F05/F07 |
| DN50 | 50 | 80 | 187 | 120 | 86 | 14 | 102 | 125 | 165 | 18 | 14 | 4-M16 | F05/F07 |
| DN65 | 65 | 110 | 315 | 160 | 108 | 17 | 122 | 145 | 185 | 18 | 17 | 4-M16 | F07/F10 |
| DN80 | 80 | 120 | 315 | 170 | 116 | 17 | 138 | 160 | 200 | 20 | 17 | 4-M16 | F07/F10 |
| DN100 | 100 | 150 | 315 | 182 | 138 | 17 | 158 | 180 | 220 | 20 | 19 | 4-M16 | F07/F10 |
| DN125 | 125 | 180 | - | - | 175 | 25 | 188 | 210 | 250 | 22 | 22 | 4-M16 | F12 |
| DN150 | 150 | 225 | - | - | 190 | 25 | 212 | 240 | 285 | 22 | 27 | 4-M20 | F12 |
