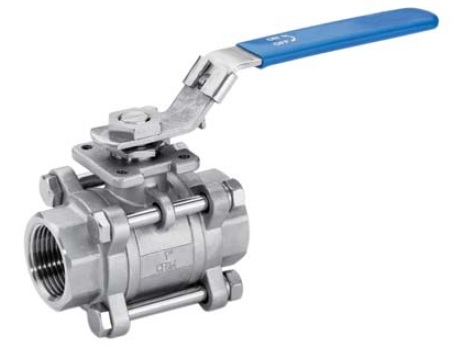

3-PC BALL VALVE, FULL PORT, 1000WOG WITH ISO5211 (LOW) MOUNTING PAD
Enlargement Product Name : 3-PC BALL VALVE, FULL PORT, 1000WOG WITH ISO5211 (LOW) MOUNTING PAD
Product Description
PRODUCT DESCRIPTIONS: V-3M
PRODUCT CODE: V-3M
ISO5211 LOW MOUNTING PAD
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598/SP-110
INVESTMENT CASTING BODY

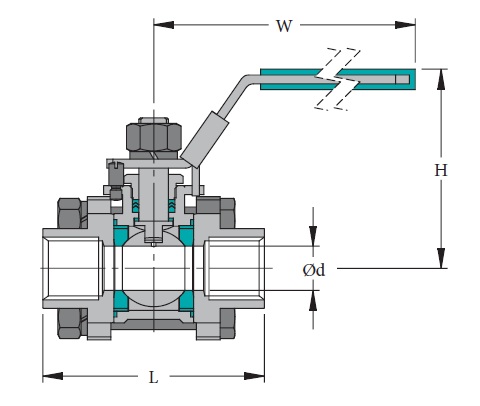

| SIZE | Ød | L | W | H | ISO 5211 | |
|---|---|---|---|---|---|---|
| 1/4" | DN8 | 12.5 | 50 | 116 | 64 | F03 |
| 3/8" | DN10 | 12.5 | 60 | 116 | 64 | F03 |
| 1/2" | DN15 | 15 | 75 | 130 | 69 | F03 |
| 3/4" | DN20 | 20 | 80 | 135 | 73 | F03 |
| 1" | DN25 | 25 | 90 | 143 | 73 | F04 |
| 1-1/4" | DN32 | 32 | 110 | 143 | 80 | F04 |
| 1-1/2" | DN40 | 38 | 120 | 182 | 87 | F05 |
| 2" | DN50 | 50 | 140 | 182 | 96 | F05 |
| 2-1/2" | DN65 | 65 | 185 | 265 | 129 | F07 |
| 3" | DN80 | 80 | 205 | 265 | 141 | F07 |
| 4" | DN100 | 98 | 240 | 315 | 173 | F10 |
