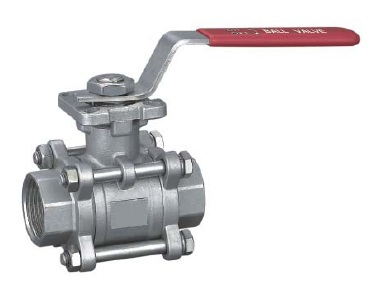

3-PC BALL VALVE, FULL PORT, 1000WOG WITH ISO5211 DIRECT MOUNTING PAD
Product Name : 3-PC BALL VALVE, FULL PORT, 1000WOG WITH ISO5211 DIRECT MOUNTING PAD
Product Description
PRODUCT DESCRIPTIONS:V-3DM
PRODUCT CODE: V-3DM
ISO5211 DIRECT MOUNTING PAD
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598/SP-110
INVESTMENT CASTING BODY

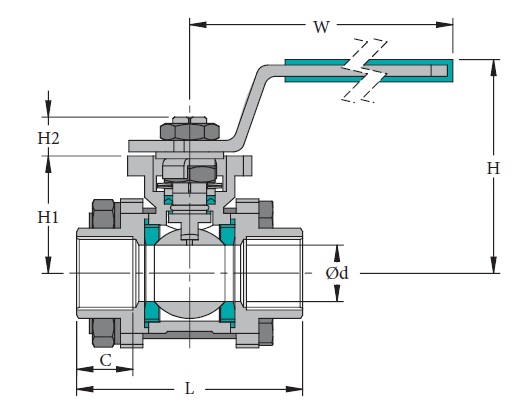

SIZE | Ød | L | H | W | C | H1 | H2 | ISO 5211 | |
---|---|---|---|---|---|---|---|---|---|
1/4" | DN8 | 8 | 60 | 63 | 120 | 13.5 | 32 | 7 | F03/F04 |
3/8" | DN10 | 10 | 60 | 63 | 120 | 13.5 | 32 | 7 | F03/F04 |
1/2" | DN15 | 15 | 75 | 70 | 120 | 17 | 40 | 7 | F03/F04 |
3/4" | DN20 | 20 | 80 | 80 | 120 | 16.5 | 50 | 9 | F03/F04 |
1" | DN25 | 25 | 90 | 90 | 135 | 19 | 57 | 11 | F04/F05 |
1-1/4" | DN32 | 32 | 110 | 95 | 185 | 23.5 | 61 | 11 | F04/F05 |
1-1/2" | DN40 | 38 | 120 | 105 | 185 | 23.5 | 76 | 14 | F05/F07 |
2" | DN50 | 50 | 140 | 112 | 185 | 26 | 84 | 14 | F05/F07 |
2-1/2" | DN65 | 65 | 185 | 174 | 248 | 40.5 | 100 | 16 | F07/F10 |
3" | DN80 | 76 | 205 | 185 | 248 | 43 | 111 | 16 | F07/F10 |
4" | DN100 | 100 | 240 | 205 | 310 | 43.5 | 130 | 16.5 | F07/F10 |
