VAN STONE FLANGE
Enlargement Product Name : VAN STONE FLANGE
Product Description
PRODUCT NAME: UVF01
PRODUCT CODE: UVF01
SIZE: 2.1/2”-8”
Product Character

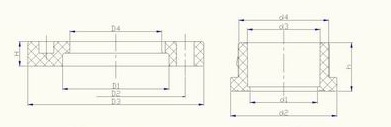

| DIMENSIONS | ||||||||||
| SIZE | d1 | d2 | d3 | d4 | h | D1 | D2 | D3 | D4 | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 2.1/2" | 68 | 107.2 | 73.4 | 90.6 | 49 | 107.6 | 140 | 177.6 | 92.6 | 24.8 |
| 3" | 77.2 | 119.9 | 89.4 | 107 | 54.9 | 120.6 | 152.5 | 191.4 | 109.4 | 26.4 |
| 4" | 102.4 | 152.5 | 110.4 | 131.8 | 64.8 | 153 | 191 | 229.7 | 134 | 28.5 |
| 6" | 156 | 206 | 160.5 | 189.2 | 85 | 207.5 | 241 | 284 | 192.5 | 32 |
| 8" | 204.2 | 260 | 201 | 237 | 119 | 261 | 296 | 342.2 | 239 | 36.2 |
