BUTTERFLY VALVE

Home > products line > PVC Valves & Flanges > UBV01
BUTTERFLY VALVE
Enlargement
Product Name : BUTTERFLY VALVE
Product Description

PRODUCT NAME: UBV01
PRODUCT CODE: UBV01
SIZE: 2.1/2" - 8"
END CONNECTION: FLANGE
WORKING PRESSURE:200PSI

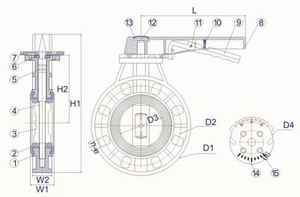

proimages/PVC_VALVE/BUTTERFLY_VALVE/BUTTERFLYVALVE_002a.jpg



    Product Character
    SPECIFICATIONS
    NOPARTMATERIALQTY
    1  Body PVC 1
    2 Seat Seal EPDM,FPM(NBR) 1
    3 Gate PVC 1
    4 Stem  SUS410 1
    5  O-Ring EPDM,FPM(NBR) 2
    6 Washer ABS 1
    7 Locking Plate PVC 1
    8 Large Handle ABS 1
    9 Smail Handle ABS 1
    10 Spring SUS304 1
    11 Pin SUS304 1
    12 Bolt SUS304 1
    13 Handle Cap ABS 1
    14 Insered Bolt SUS304 4
    15 Bolt  Cap PVC 4
    SIZED1DINJISANSID3D4LH1H2W1W2DINJISANSI
    D2D2D2n-en-Øen-Øe
    2" 160.1 120 100 120.4 55.6 99.7 189.7 223.3 98.3 44 32 4-20 4-19 4-19
    2.1/2" 179.8 141.2 140 139.5 68.7 99.7 189 247 111.6 48.3 32.4 4-20 4-19 4-19
    3" 195 156.4 140 139.5 83.9 99.7 238.5 282.6 132.5 51.9 36.3 8-20 4-19 4-19
    4" 228.1 183 150 152.4 103.2 99.7 239.5 319.4 155.4 54.5 44.1 8-20 8-19 8-19
    5" 257 210.9 175 190.5 129.5 139 309.8 368 170.3 66.5 54.6 8-21.5 8-19 8-19
    6" 285.4 238.5 240 241.5 151.1 140 309.8 400.8 187.5 73.1 56.4 8-24 8-23 8-22
    8" 342.6 292.4 295 298.5 198.6 140 309.8 473 230.1 92 72.2 8-24 12-23 8-23
