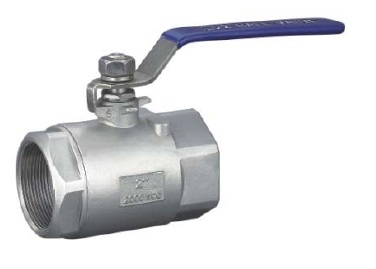

2-PC BALL VALVE, REDUCE PORT, 2000WOG / PN125
Enlargement Product Name : 2-PC BALL VALVE, REDUCE PORT, 2000WOG / PN125
Product Description
PRODUCT DESCRIPTIONS: R-2
PRODUCT CODE: R-2
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE
ALL TYPE OF THREADINGS AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598/SP-110
INVESTMENT CASTING BODY

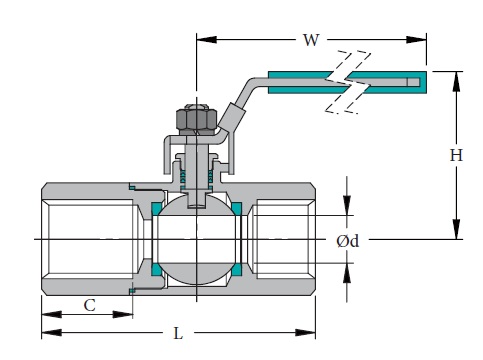

| SIZE | Ød | L | W | H | C | |
|---|---|---|---|---|---|---|
| 1/2" | DN15 | 12.5 | 63.5 | 98 | 55 | 15 |
| 3/4" | DN20 | 17 | 72.5 | 110 | 62 | 17 |
| 1" | DN25 | 22 | 87.5 | 150 | 72 | 20 |
| 1-1/4" | DN32 | 25 | 96 | 143 | 80 | 19 |
| 1-1/2" | DN40 | 31.5 | 105 | 172 | 90 | 21 |
| 2" | DN50 | 38 | 119 | 172 | 94 | 23 |
