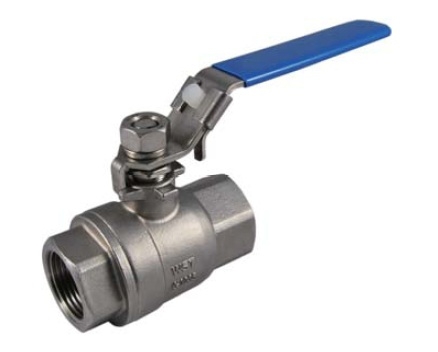

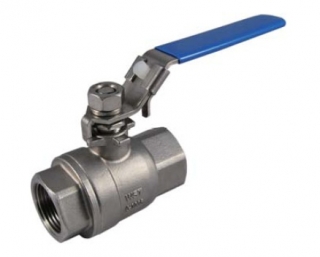

2-PC BALL VALVE, FULL PORT, 1000WOG, DIN STANDARD M3 TYPE
Enlargement Product Name : 2-PC BALL VALVE, FULL PORT, 1000WOG, DIN STANDARD M3 TYPE
Product Description
PRODUCT DESCRIPTIONS: LVM3-2
PRODUCT CODE: LVM3-2
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
FACE TO FACE: DIN3202-M3
LOCKING LEVER AVAILABLE
ALL TYPE OF THREADINGS AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598
INVESTMENT CASTING BODY

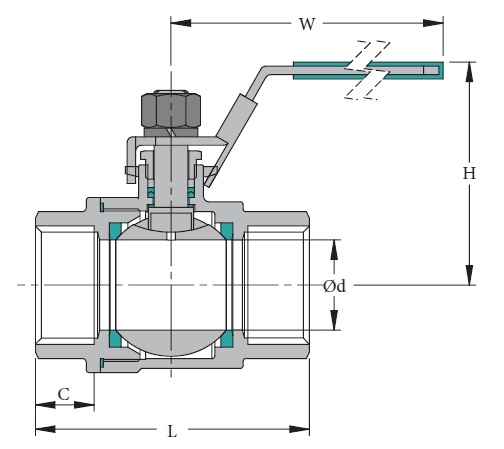

| SIZE | Ød | L | W | H | C | |
|---|---|---|---|---|---|---|
| 1/4" | DN8 | 10.5 | 50 | 100 | 52 | 10.5 |
| 3/8" | DN10 | 10.5 | 60 | 100 | 57 | 11.5 |
| 1/2" | DN15 | 15 | 75 | 120 | 63 | 16 |
| 3/4" | DN20 | 19.5 | 80 | 120 | 67 | 16 |
| 1" | DN25 | 24 | 90 | 150 | 78.5 | 19 |
| 1-1/4" | DN32 | 31.5 | 110 | 150 | 83.5 | 22 |
| 1-1/2" | DN40 | 38 | 120 | 170 | 96 | 23 |
| 2" | DN50 | 48 | 140 | 170 | 102 | 25 |
| 2-1/2" | DN65 | 64 | 185 | 250 | 130 | 36 |
| 3" | DN80 | 78 | 205 | 250 | 148 | 36 |
| 4" | DN100 | 98 | 240 | 280 | 180 | 47 |
