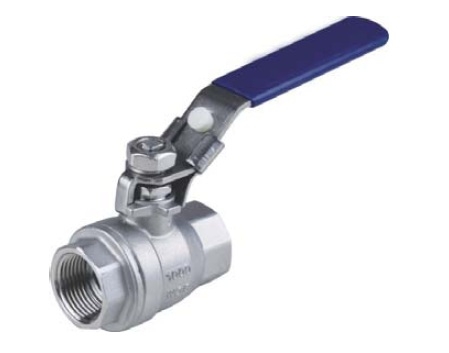

2-PC BALL VALVE, FULL PORT, 1000WOG, LIGHT PATTERN
Enlargement Product Name : 2-PC BALL VALVE, FULL PORT, 1000WOG, LIGHT PATTERN
Product Description
PRODUCT DESCRIPTIONS:KL-2L
PRODUCT CODE: KL-2L
MATERIAL: CF8 / SS304, CF8M / SS316, WCB
LOCKING LEVER AVAILABLE
E-catalog page :
Product Character
STANDARD: ASME B16.34
TESTING TO API598
INVESTMENT CASTING BODY

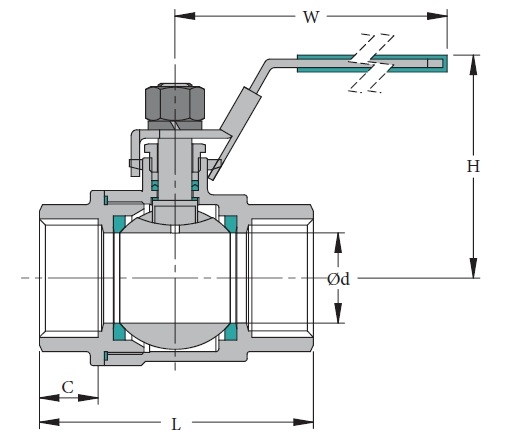

| SIZE | Ød | L | W | H | C | |
|---|---|---|---|---|---|---|
| 1/4" | DN8 | 10.5 | 48 | 100 | 51.5 | 10 |
| 3/8" | DN10 | 10.5 | 48 | 100 | 51.5 | 10 |
| 1/2" | DN15 | 14 | 54 | 100 | 57.5 | 12.5 |
| 3/4" | DN20 | 19 | 60 | 120 | 64.5 | 13 |
| 1" | DN25 | 24 | 72 | 120 | 68 | 15.5 |
| 1-1/4" | DN32 | 31 | 87 | 150 | 79.5 | 17.5 |
| 1-1/2" | DN40 | 38 | 96 | 170 | 90.5 | 18 |
| 2" | DN50 | 48 | 108 | 170 | 98 | 18 |
| 2-1/2" | DN65 | 64 | 136 | 250 | 122 | 24 |
| 3" | DN80 | 76 | 164 | 250 | 132 | 27.5 |
| 4" | DN100 | 98 | 193 | 300 | 163 | 28 |
