Countersunk Plug
Enlargement Product Name : Countersunk Plug
Product Description
Product Name: Countersunk Plug
Item Number: 291N
Class: 150LBS
Material: ASTM A197, ASTM A47
Dimension: ASME B16.3 B16.14
Galvanization: ASTM A153
Thread: B1.20.1

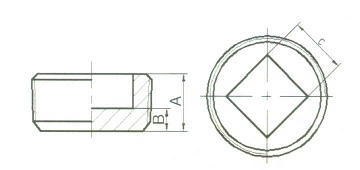

Product Character
|
Size |
Dimensions |
|||
|
Inch |
mm |
A |
B |
C |
|
1/2" |
15 |
14.2 |
4.1 |
9.5 |
|
3/4" |
20 |
16 |
4.6 |
12.7 |
|
1" |
25 |
19.1 |
5.1 |
12.7 |
|
1.1/4" |
32 |
20.3 |
5.6 |
19 |
|
1.1/2" |
40 |
21.1 |
6.1 |
19 |
|
2" |
50 |
22.4 |
6.6 |
22.2 |
|
2.1/2" |
65 |
27.2 |
7.4 |
28.6 |
|
3" |
80 |
28.7 |
7.9 |
34.9 |
|
4" |
100 |
31 |
9.4 |
50.8 |
