Hex Bushing (Inside Head)
Enlargement Product Description
Product Name: Hex Bushing (Inside Head)
Item Number: 241N
Class: 150LBS
Material: ASTM A197, ASTM A47
Dimension: ASME B16.3 B16.14
Galvanization: ASTM A153
Thread: B1.20.1
Product Character
|

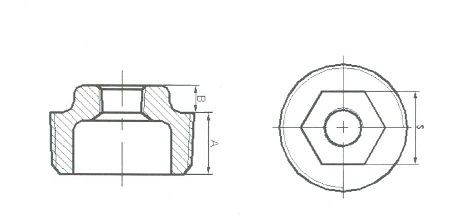

Size |
Dimensions |
|||
|
Inch |
mm |
A |
B |
S |
|
1"X1/8" |
25X6 |
19.1 |
7.6 |
28.5 |
|
1"X1/4" |
25X8 |
19.1 |
7.6 |
28.5 |
|
1"X3/8" |
25X10 |
19.1 |
7.6 |
28.5 |
|
1.1/4"X1/4" |
32X8 |
20.3 |
8.6 |
28.5 |
|
1.1/4"X3/8" |
32X10 |
20.3 |
8.6 |
28.5 |
|
1.1/4"X1/2" |
32X15 |
20.3 |
8.6 |
34 |
|
1.1/2"X1/8" |
40X6 |
21.1 |
9.4 |
28.5 |
|
1.1/2"X1/4" |
40X8 |
21.1 |
9.4 |
28.5 |
|
1.1/2"X3/8" |
40X10 |
21.1 |
9.4 |
28.5 |
|
1.1/2"X1/2" |
40X15 |
21.1 |
9.4 |
34 |
|
1.1/2"X3/4" |
40X20 |
21.1 |
9.4 |
41.4 |
|
2"X1/4" |
50X8 |
22.4 |
10.4 |
28.5 |
|
2"X3/8" |
50X10 |
22.4 |
10.4 |
28.5 |
|
2"X1/2" |
50X15 |
22.4 |
10.4 |
34 |
|
2"X3/4" |
50X20 |
22.4 |
10.4 |
41.4 |
|
2"X1" |
50X25 |
22.4 |
10.4 |
49.5 |
|
2.1/2"X1/2" |
65X15 |
27.2 |
11.2 |
34 |
|
2.1/2"X3/4" |
65X20 |
27.2 |
11.2 |
41.4 |
|
2.1/2"X1" |
65X25 |
27.2 |
11.2 |
49.5 |
|
2.1/2"X1.1/4" |
65X32 |
27.2 |
11.2 |
60.7 |
|
3"X1/2" |
80X15 |
28.7 |
12.2 |
34 |
|
3"X3/4" |
80X20 |
28.7 |
12.2 |
41.4 |
|
3"X1" |
80X25 |
28.7 |
12.2 |
49.5 |
|
3"X1.1/4" |
80X32 |
28.7 |
12.2 |
60.7 |
|
3"X1.1/2" |
80X40 |
28.7 |
12.2 |
68.1 |
|
4"X3/4" |
100X20 |
31 |
17 |
41.5 |
|
4"X1" |
100X25 |
31 |
15.2 |
49.5 |
|
4"X1.1/4" |
100X32 |
31 |
15.2 |
60.7 |
|
4"X1.1/2" |
100X40 |
31 |
15.2 |
68.1 |
|
4"X2" |
100X50 |
31 |
15.2 |
83.3 |
|
4"X2.1/2" |
100X65 |
31 |
15.2 |
98 |
|
5"X2" |
125X50 |
33.3 |
15.2 |
83.3 |
|
5"X2.1/2" |
125X65 |
33.3 |
15.2 |
98 |
|
6"X3" |
150X80 |
35.6 |
19.1 |
117.3 |
|
6"X4" |
150X100 |
35.6 |
19.1 |
147.1 |
